Place of Origin: | China |
Brand Name: | awi |
Certification: | SGS |
Model Number: | awi-d30 |
Minimum Order Quantity: | 10000pieces |
---|---|
Price: | 0.003-0.006$/piece |
Packaging Details: | in carton box |
Delivery Time: | within 7 days |
Payment Terms: | T/T, Western Union,paypal |
Supply Ability: | 10000pieces |
Mateial: | Conductive Fabric+foam | Feature: | Emi Shielding, Conductive ,antistatic |
---|---|---|---|
Shape: | Customized |

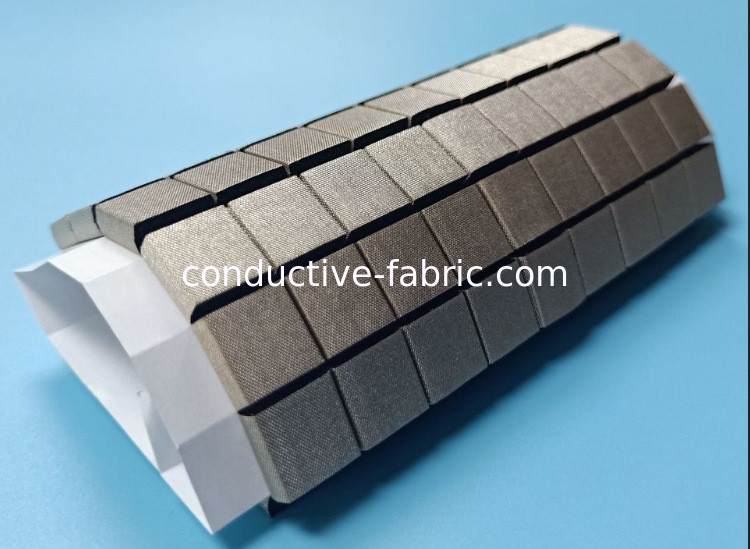

Emi gasket, emi shielding fabric,conductive fabric over foam
fabric over foam
emi gasket
emi shielding gasket
1.Product description:
Conductive foam gasket is made of flame retardant conductive woven cloth (can choose not flame retardant) wrapped in compression performance is very good (urethane) polyurethane foam core;
Conductive fabric has good electrical conductivity, surface can be easily fixed in need shielding device with adhesive tape;
Have different section shape, installation method, level of UL and shielding effectiveness of shielding materials to choose from.
2.product features:
Conductive cloth surface resistivity is low, can play with a metallic excellent conductivity, have high grounding and shielding effect;
Have a certain environmental sealing effect;
Use the PU foam core materials, reducing surface pressure, excellent resilience, make choose diversification;
For the lining is smooth and rich flexibility conductive fiber, it is suitable for various adherent surface shape, makes easy installation;
When installed on the chassis, cabinets and other objects, adhesive stickers are more likely to stick than general;
The lining has flame retardant material specifications can be at ease use;
3.Applications:
Conductive cloth pad is suitable for electromagnetic shielding, anti-static, grounding occasions;

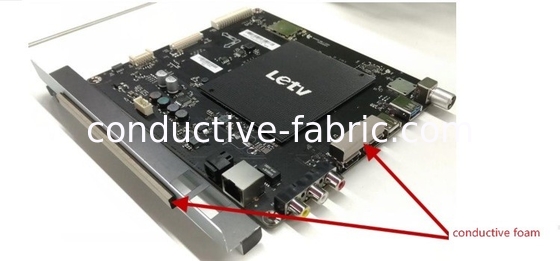

Widely used communication chassis cabinets, notebook computers, computer and peripheral equipment, automation and military equipment in the field of various occasions; Wireless communication, medical and other electronic products, etc.;
Not suitable for hot and humid environment and high pressure situations, not suitable for switch and often have the occasion of a hinge.
4.technical data:
shielding effect:
Fequency | 100MHz | 200MHz | 500MHz | 1GHz | 5GHz | 10GHz | 18GHz |
Attenuation | 95 | 110 | 115 | 120 | 110 | 100 | 95 |
Thickness of conductive fabric:0.08mm
Conductivity:0.02---0.08ohms/square
Work temperature:-40-+85℃
Resistance:>100,000
Compress setting:≤20%
Size discrepancy :width,height ±0.5mm
5. shape specifications:

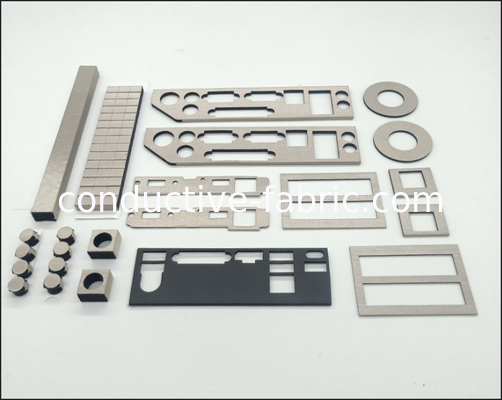

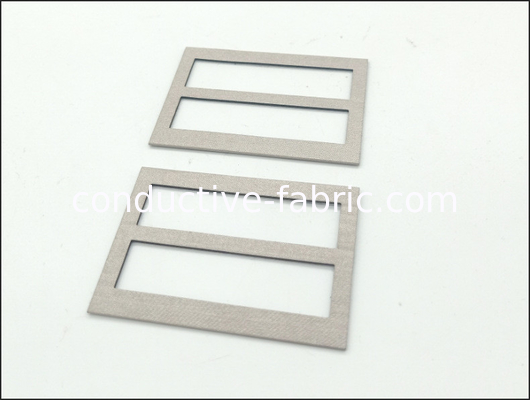

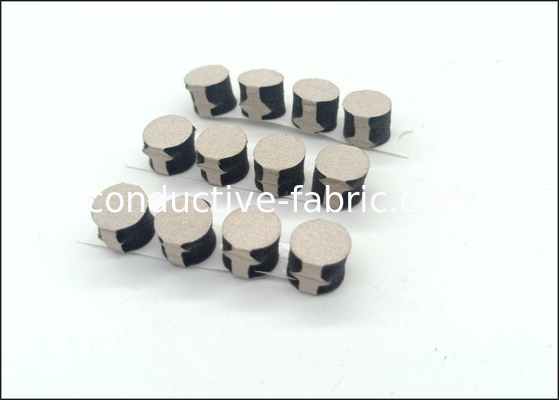

Rectangle, square, D, C, P, D, L, oval, round, tee, bell, J;

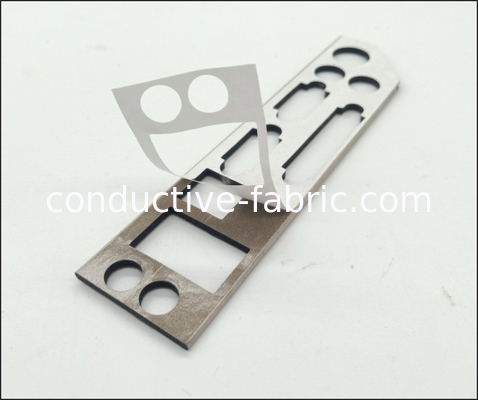

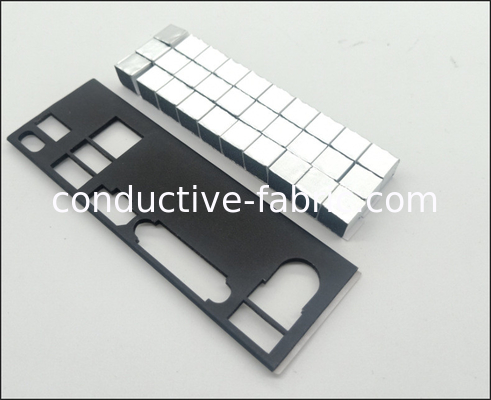

The I/O connector, D - SUB interface pad series, USB series;

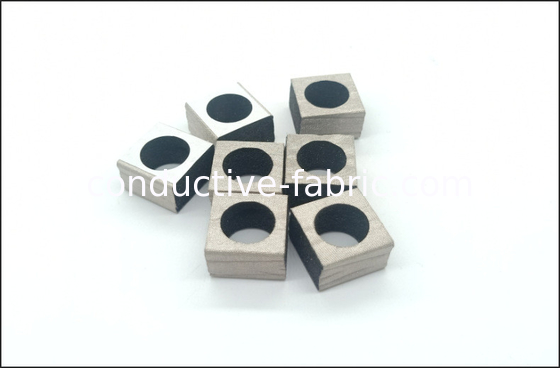

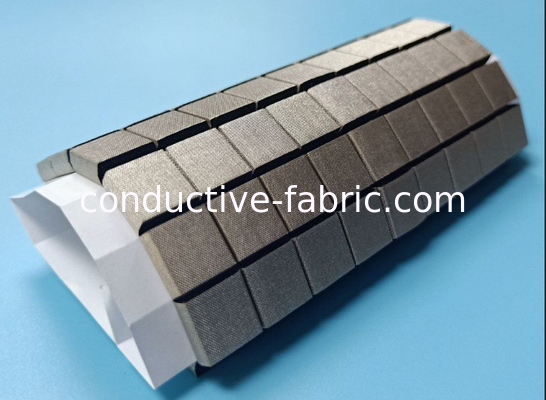

Other customized shape:
