    Product Details:

    Place of Origin: China
    Brand Name: awi
    Certification: SGS
    Model Number: awi-d30

    Payment & Shipping Terms:

    Minimum Order Quantity: 10000pieces
    Price: 0.02-0.023$/piece
    Packaging Details: in carton box
    Delivery Time: within 7 days
    Payment Terms: T/T, Western Union,paypal
    Supply Ability: 10000pieces
    Contact Now
    Detailed Product Description
    Mateial: Conductive Fabric+foam Feature: Emi Shielding, Conductive ,antistatic, Fabric Over Foam
    Shape: Customized

    shielding gasket, emi gasket, emi shielding fabric, fabric over foam



    1.Product description:

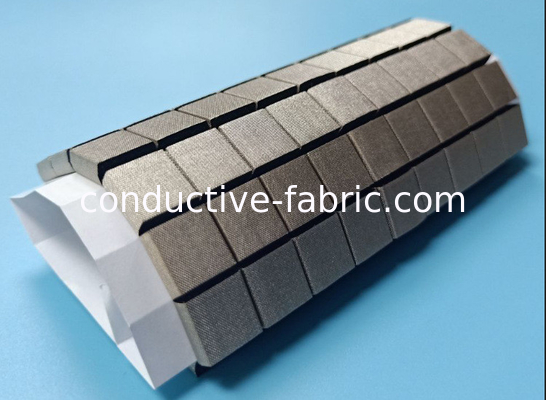

    Conductive foam gasket is made of flame retardant conductive woven cloth (can choose not flame retardant) wrapped in compression performance is very good (urethane) polyurethane foam core;

    Conductive fabric has good electrical conductivity, surface can be easily fixed in need shielding device with adhesive tape;

    Have different section shape, installation method, level of UL and shielding effectiveness of shielding materials to choose from.



    2.product features:

    Conductive cloth surface resistivity is low, can play with a metallic excellent conductivity, have high grounding and shielding effect;

    Have a certain environmental sealing effect;

    Use the PU foam core materials, reducing surface pressure, excellent resilience, make choose diversification;

    For the lining is smooth and rich flexibility conductive fiber, it is suitable for various adherent surface shape, makes easy installation;

    When installed on the chassis, cabinets and other objects, adhesive stickers are more likely to stick than general;

    The lining has flame retardant material specifications can be at ease use;



    3.Applications:

    Conductive cloth pad is suitable for electromagnetic shielding, anti-static, grounding occasions;

    Widely used communication chassis cabinets, notebook computers, computer and peripheral equipment, automation and military equipment in the field of various occasions; Wireless communication, medical and other electronic products, etc.;

    Not suitable for hot and humid environment and high pressure situations, not suitable for switch and often have the occasion of a hinge.



    4.technical data:

    shielding effect:



    Fequency 100MHz 200MHz 500MHz 1GHz 5GHz 10GHz 18GHz
    Attenuation 95 110 115 120 110 100 95

    Thickness of conductive fabric:0.08mm

    Conductivity:0.02---0.08ohms/square

    Work temperature:-40-+85℃

    Resistance:>100,000

    Compress setting:≤20%

    Size discrepancy :width,height ±0.5mm



    shielding gasket, emi gasket, emi shielding fabric, fabric over foamshielding gasket, emi gasket, emi shielding fabric, fabric over foam

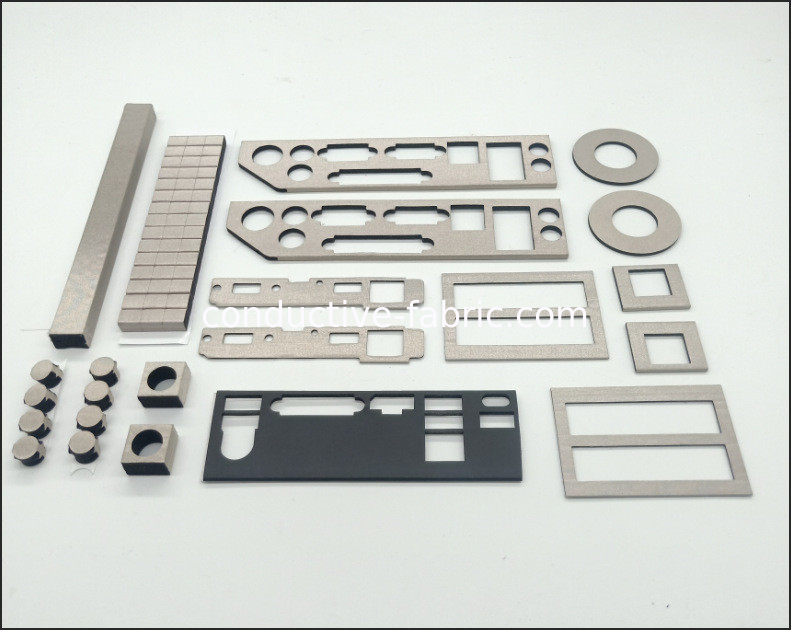

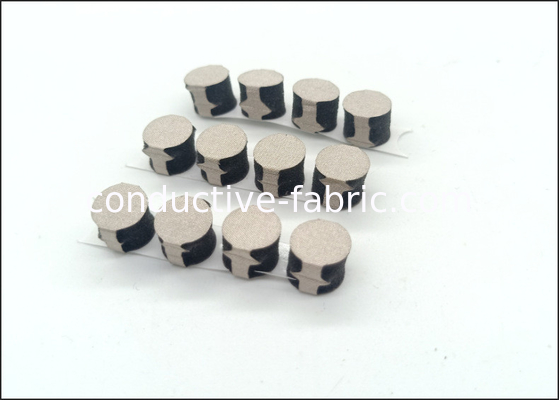

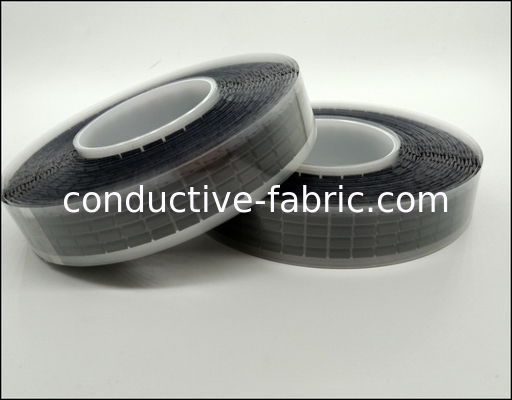

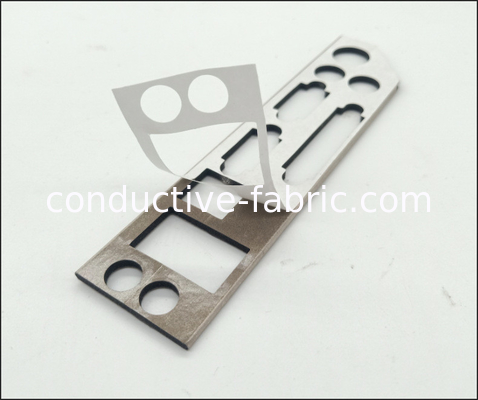

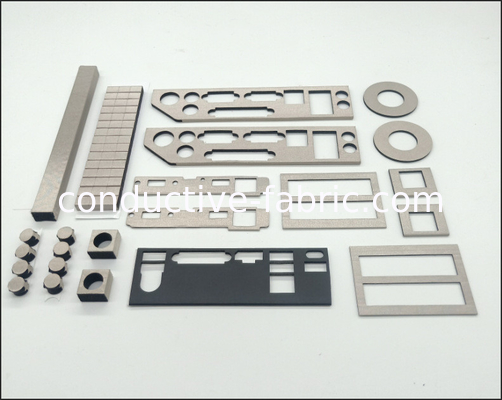

    5. shape specifications:
    Rectangle, square, D, C, P, D, L, oval, round, tee, bell, J;
    The I/O connector, D - SUB interface pad series, USB series;



    Other customized shape:

    shielding gasket, emi gasket, emi shielding fabric, fabric over foamshielding gasket, emi gasket, emi shielding fabric, fabric over foamshielding gasket, emi gasket, emi shielding fabric, fabric over foam





    shielding gasket, emi gasket, emi shielding fabric, fabric over foamshielding gasket, emi gasket, emi shielding fabric, fabric over foamshielding gasket, emi gasket, emi shielding fabric, fabric over foamshielding gasket, emi gasket, emi shielding fabric, fabric over foamshielding gasket, emi gasket, emi shielding fabric, fabric over foam
