    Product Details:

    Place of Origin: China
    Brand Name: awi
    Model Number: awi-d30

    Payment & Shipping Terms:

    Minimum Order Quantity: 500pieces
    Price: 0.9-1.5$/piece
    Packaging Details: in carton box
    Delivery Time: within 7 days
    Payment Terms: T/T, Western Union,paypal
    Supply Ability: 10000pieces
    Contact Now
    Detailed Product Description
    Mateial: Conductive Fabric+foam Feature: Emi Shielding, Conductive ,antistatic
    Shape: Customized

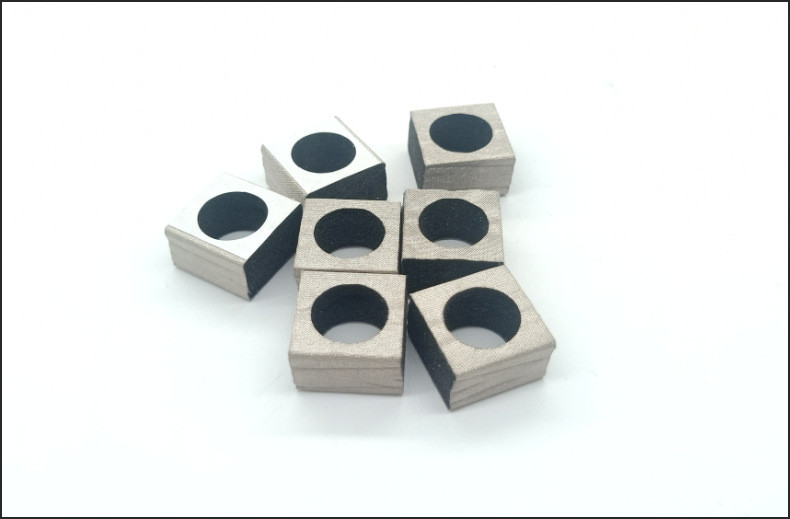

    Emi,emc, shielding, gasket, fabric over foam


    conductive foam

    EMI conductive foam

    Fabric over foam

    EMI shielding foam

    EMI gasket

    EMC gasket



    1.Product description:

    Conductive foam gasket is made of flame retardant conductive woven cloth (can choose not flame retardant) wrapped in compression performance is very good (urethane) polyurethane foam core;

    Conductive fabric has good electrical conductivity, surface can be easily fixed in need shielding device with adhesive tape;

    Have different section shape, installation method, level of UL and shielding effectiveness of shielding materials to choose from.


    2.product features:

    Conductive cloth surface resistivity is low, can play with a metallic excellent conductivity, have high grounding and shielding effect;

    Have a certain environmental sealing effect;

    Use the PU foam core materials, reducing surface pressure, excellent resilience, make choose diversification;

    For the lining is smooth and rich flexibility conductive fiber, it is suitable for various adherent surface shape, makes easy installation;

    When installed on the chassis, cabinets and other objects, adhesive stickers are more likely to stick than general;

    The lining has flame retardant material specifications can be at ease use;



    Conductive cloth pad is suitable for electromagnetic shielding, anti-static, grounding occasions;

    Widely used communication chassis cabinets, notebook computers, computer and peripheral equipment, automation and military equipment in the field of various occasions; Wireless communication, medical and other electronic products, etc.;

    Not suitable for hot and humid environment and high pressure situations, not suitable for switch and often have the occasion of a hinge.


    4.technical data:

    shielding effect:


    Fequency 100MHz 200MHz 500MHz 1GHz 5GHz 10GHz 18GHz
    Attenuation 95 110 115 120 110 100 95

    Thickness of conductive fabric:0.08mm


    Work temperature:-40-+85℃


    Compress setting:≤20%

    Size discrepancy :width,height ±0.5mm


    emi,emc, shielding, gasket, fabric over foamemi,emc, shielding, gasket, fabric over foam


    5. shape specifications:
    Rectangle, square, D, C, P, D, L, oval, round, tee, bell, J;
    The I/O connector, D - SUB interface pad series, USB series;


    Other customized shape:

    emi,emc, shielding, gasket, fabric over foamemi,emc, shielding, gasket, fabric over foamemi,emc, shielding, gasket, fabric over foam
