| Place of Origin: | China |
| Brand Name: | awi |
| Certification: | SGS |
| Model Number: | awi-d30 |
| Minimum Order Quantity: | 10000pieces |
|---|---|
| Price: | 0.01-0.027$/piece |
| Packaging Details: | in carton box |
| Delivery Time: | within 7 days |
| Payment Terms: | T/T, Western Union,paypal |
| Supply Ability: | 10000pieces |
| Mateial: | Conductive Fabric+foam, Conductive Foil+foam | Feature: | Emi Shielding, Conductive ,antistatic, Emi Rfi Shielding |
|---|---|---|---|
| Shape: | Customized |

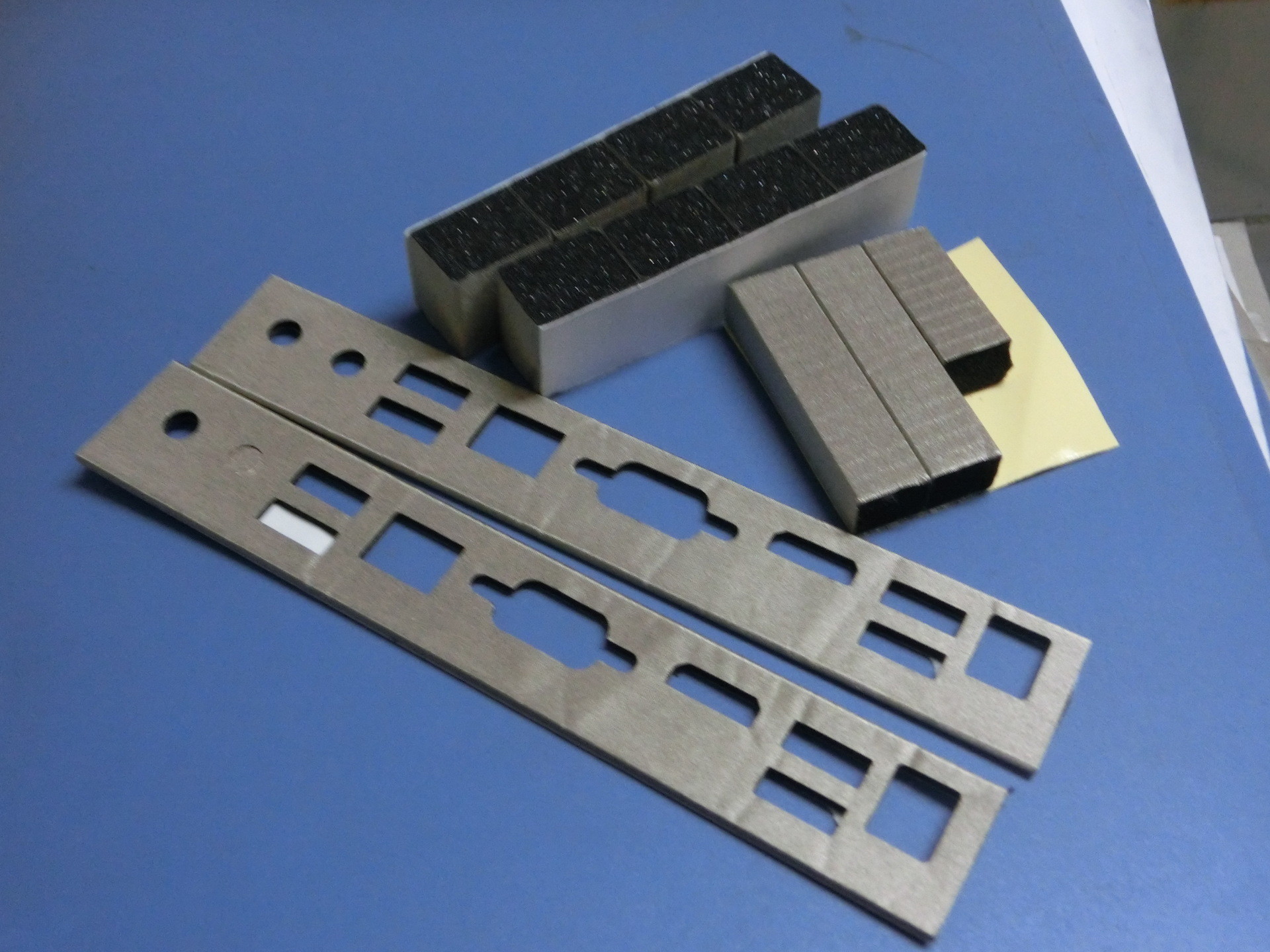

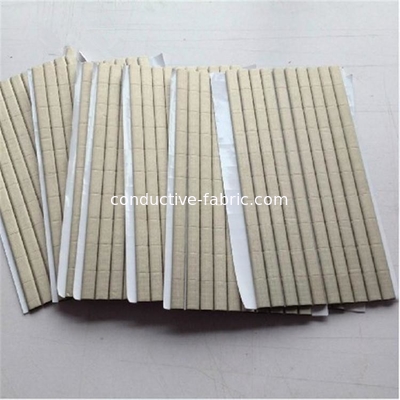

emi rfi shielding gaskets, conductive fabric over foam
emi rfi shielding gaskets
conductive foam
EMI conductive foam
Fabric over foam
EMI shielding foam
EMI gasket
EMC gasket
conductive gasket
1.Product description:
Conductive foam gasket is made of flame retardant conductive woven cloth (can choose not flame retardant) wrapped in compression performance is very good (urethane) polyurethane foam core;
Conductive fabric has good electrical conductivity, surface can be easily fixed in need shielding device with adhesive tape;
Have different section shape, installation method, level of UL and shielding effectiveness of shielding materials to choose from.
2.product features:
Conductive cloth surface resistivity is low, can play with a metallic excellent conductivity, have high grounding and shielding effect;
Have a certain environmental sealing effect;
Use the PU foam core materials, reducing surface pressure, excellent resilience, make choose diversification;
For the lining is smooth and rich flexibility conductive fiber, it is suitable for various adherent surface shape, makes easy installation;
When installed on the chassis, cabinets and other objects, adhesive stickers are more likely to stick than general;
The lining has flame retardant material specifications can be at ease use;
3.Applications:
Conductive cloth pad is suitable for electromagnetic shielding, anti-static, grounding occasions;
Widely used communication chassis cabinets, notebook computers, computer and peripheral equipment, automation and military equipment in the field of various occasions; Wireless communication, medical and other electronic products, etc.;
Not suitable for hot and humid environment and high pressure situations, not suitable for switch and often have the occasion of a hinge.
4.technical data:
shielding effect:
| Fequency | 100MHz | 200MHz | 500MHz | 1GHz | 5GHz | 10GHz | 18GHz |
| Attenuation | 95 | 110 | 115 | 120 | 110 | 100 | 95 |
Thickness of conductive fabric:0.08mm
Conductivity:0.02---0.08ohms/square
Work temperature:-40-+85℃
Resistance:>100,000
Compress setting:≤20%
Size discrepancy :width,height ±0.5mm
5. shape specifications:
Rectangle, square, D, C, P, D, L, oval, round, tee, bell, J;
The I/O connector, D - SUB interface pad series, USB series;
Other customized shape:
